Automatic zinc stripping machine production line
Classification :
Keywords:
zinc

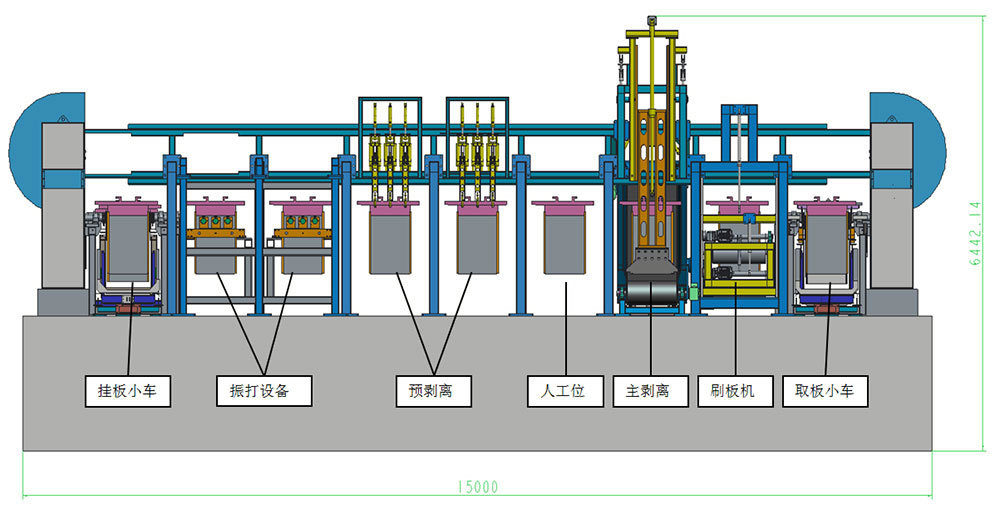

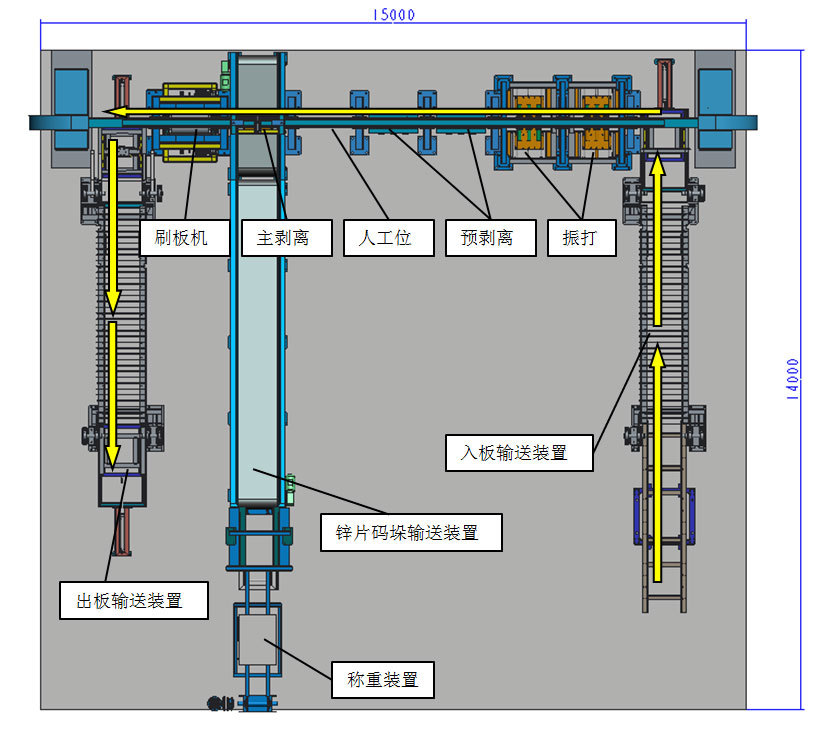

This automatic line is mainly used for the automatic stripping process of the precipitated zinc flakes enriched in the cathode plate of the zinc electrolysis workshop. The zinc stripping process adopts the arrangement of "double rapping, double pre-stripping", the docking process, the board feeding process, the zinc stripping process, and the zinc connection process have clear functions and do not interfere with each other.
Equipment parameter
|
NO. |
Item |
Technical parameter |
Remark |
|
1 |
Capacity |
100kt/a |
According to |
|
2 |
Working day |
330(days) |
|
|
3 |
Plate size |
1.13㎡-3.6㎡ |
|
|
4 |
Number of layers/blocks per stack |
12 floor/46 layers |
|
|
5 |
Weight per stack |
1058 ～1150Kg |
|
